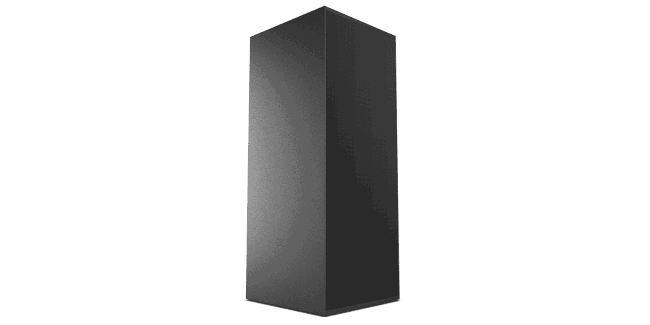

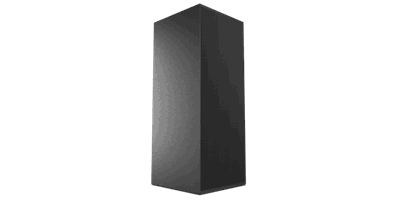

SPECIFICATIONS: SYVA LOW
Description High power subwoofer, amplified by LA2Xi² / LA4X / LA8 / LA12X
Low frequency limit (-10 dB) 40 Hz ([SYVA LOW_100])
Maximum SPL1 137 dB ([SYVA LOW_100])
Transducers LF: 2 × 12"
Acoustical load Bass-reflex, L-Vents
Nominal impedance 4 O
Connectors IN: 4-point speakON®
AutoConnect
Weight (net) 29 kg / 64 lb
Cabinet First grade Baltic beech and birch plywood
Front Steel grill with anti-corrosion coating
Acoustically neutral 3D fabric
Finish Fine grain dark grey brown Pantone 426C
IP 55
1- Peak level at 1 m under half space conditions using pink noise with crest factor 4 (preset specified in brackets).
2- For Max SPL values using LA2Xi, refer to LA2Xi system specification sheet.
