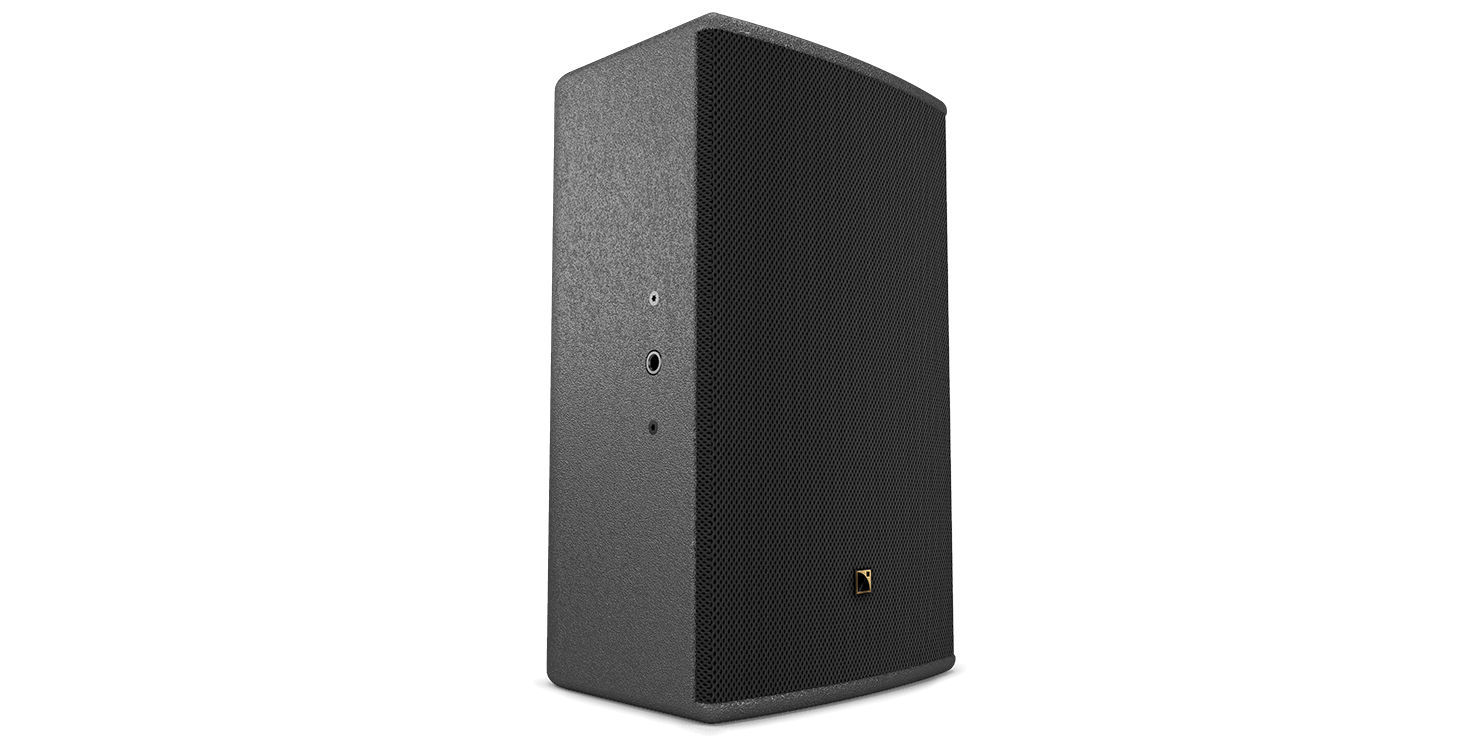

2-way passive coaxial enclosure
amplified by LA2Xi / LA4X / LA8 / LA12X
Usable bandwidth (-10 dB)
60 Hz – 20 kHz ([X8])
Maximum SPL1
129 dB ([X8])
Nominal directivity (-6 dB)
100° axisymmetric
Monitor angle
35°
Transducers
LF: 1 × 8ohm cone driver
HF: 1 × 1.5? diaphragm compression driver, neodymium
Acoustical load
LF: bass-reflex, L-Vents
HF: conical waveguide
Nominal impedance
8 ohm
1 Peak level measured at 1 m under free field conditions using pink noise with crest factor 4 (preset specified in brackets).
