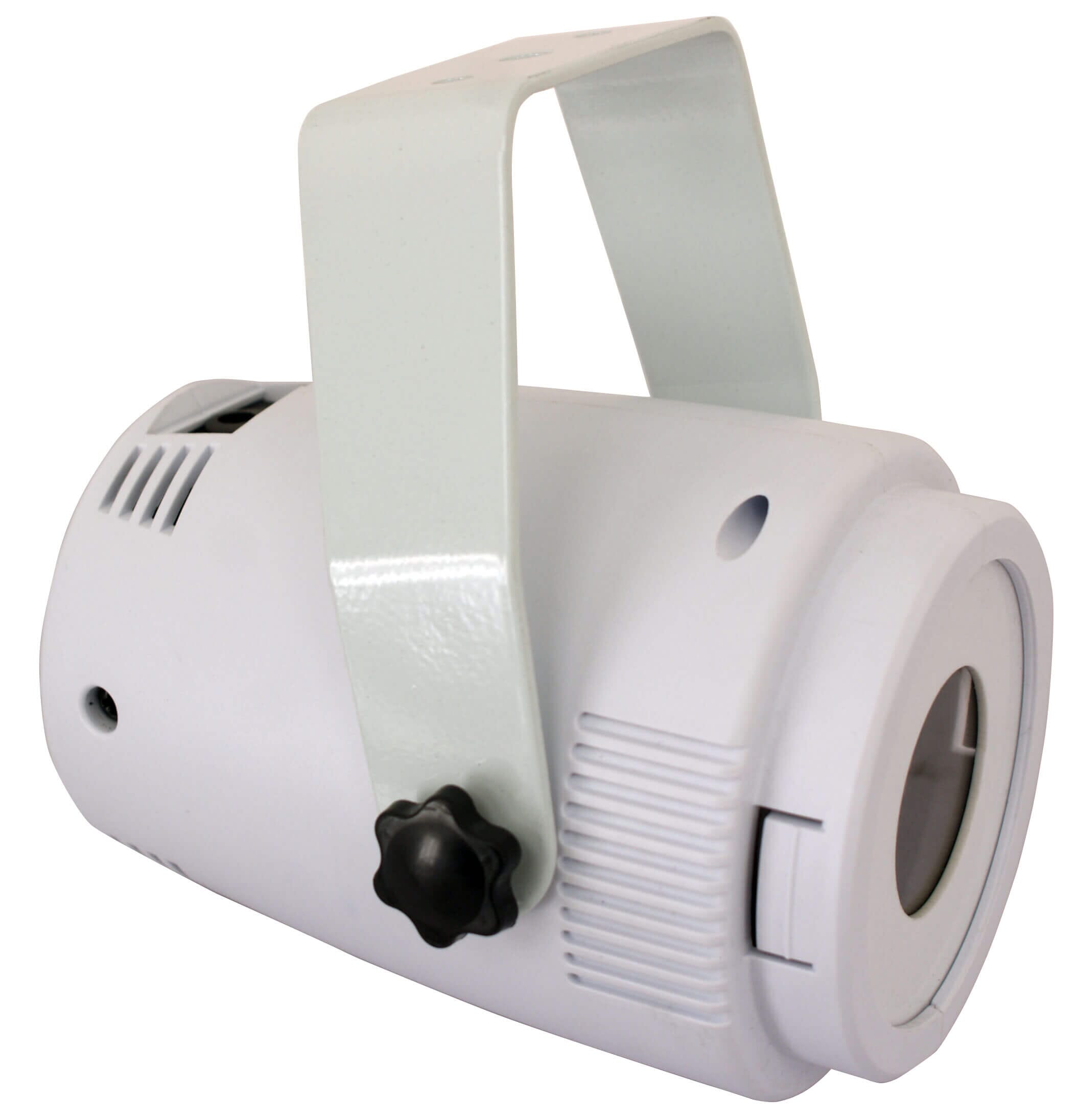

HSA080 is a LED Zoom Beam Light; the white LED will
form changing of the light size beam effect after
focusing image via the up and down movement of Fresnel
lens which drive by stepper motor. There are
10 DIP switch on the back side of the light, a network
cable socket with one input and one output,
and a 12V DC input socket. It’s easy to control and operate,
with small and exquisite appearance, stylish
and practical, excellent beam effects.
Widely used at home, KTV room, Disco Hall and other
small entertainment places.
Light Source: 8W LumiEngin-SC3
LED Lamp Life:50000 hours
DIP Switch:10
Lens: Fresnel
Control Channel:4 DMX Channels
Control Protocol: International standard DMX512 control protocol
Strobe:High- speed electronic adjustment strobe, 1- 20 flashes / sec
Control Mode:DMX , Sound Activate , AUTO
Optical effects: Strobe, the white LED will form changing of the light size
beam effect after focusing image via the up and down movement of Fresnel
lens which drive by step motor.
Protection Rating:IP20
Input Power:Adapter AC100-240V Light DC12V
Power consumption:12W
Working Environment:up to 40?
Lighting maximum surface temperature:50?
Dimension:140.8×?102mm
Gift box Package:250X150X115 (1pc/CTN)
Master Package:505X460X365(18PCS/CTN)
N.W:0.52Kg (1PC)
G.W:0.86 kg (1PC)
Application Fields: Widely used at Home, KT
