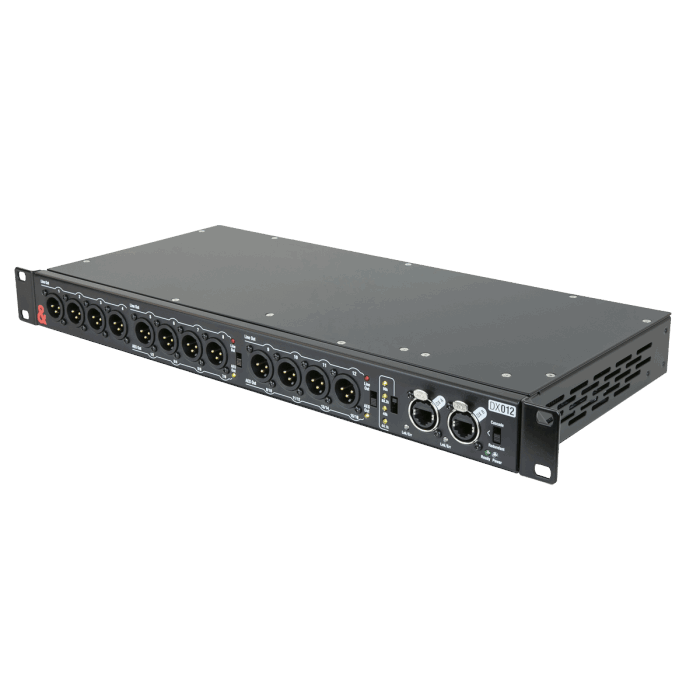

A&H DX012 Audiorack 12 XLR Output Analogue/AES DX Expander

Compatible with SQ and dLive systems (from firmware 1.9)
12 XLR outputs: CH 1-4 Analog output
CH 5-8 Analog output or AES digital output (switchable)
CH 9-12 Analog output or AES digital output (switchable)
AES outputs globally switchable between: 44.1 kHz, 48 kHz, 88.2 kHz and 96 kHz
Cascade mode enables series connection of 2 DX16 / DX12
Expanders for additional I/Os
Redundant DX connection to compatible hardware
Several DX012 can be added to one system
Up to 16 DX012 units can be added to an SQ system
Up to 46 DX012 units can be added to a dLive S Class system
Up to 22 DX012 units can be added to a dLive C Class system
In a rack (1HE)
Plug and Play - no IP addressing required
Compatible with CAT5e cables (or higher) up to 100m in length
EtherCon ports
