ANALOG DELAY

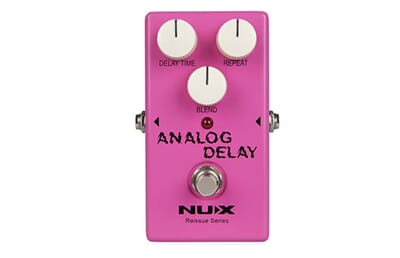

The NUX ANALOG DELAY pedal from the Reissue Series has 100% analogue circuit
with 3205 and 3102 BBD chips.It gives you the warm sounding analog delay effect from the 80's.
Experiment the effect by turning up the repeat and tweaking the DELAY TIME knob!
OVERVIEW
Vintage Analog Delay Effect
Pure Analog Bucket-Bridgade Circuit
True-bypass Hardware Switching
Specifications
Current draw < 20 mA
Input impedance 1M Ohms
Output impedance 10K Ohms
Power 9V battery or external AC adaptor delivering 9V DC regulated minimum 300mA
Dimensions 121(L) X 77(W) X 48(D) mm
Weight 230g
