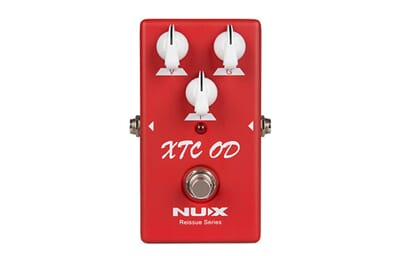

TC OD
The NUX XTC OD pedal from the Reissue Series gives you the overdrive tone from the red channel of the
famous boutique amplifier.It has rich harmonics and fast response.The NUX XTC OD is a go-to box ideal
for Blues and Classic Rock!
OVERVIEW
Pure Analog Circuit
Smooth and Dynamic Distortion
Level, Gain, Tonr
True-bypass Hardware Switching
Specifications
Input impedance 1M Ohms
Output impedance 10K Ohms
Current draw <20 mA
Power 9V battery or external AC adaptor delivering 9V DC regulated minimum 300mA
Dimensions 121(L) X 77(W) X 48(D) mm
Weight 230g
